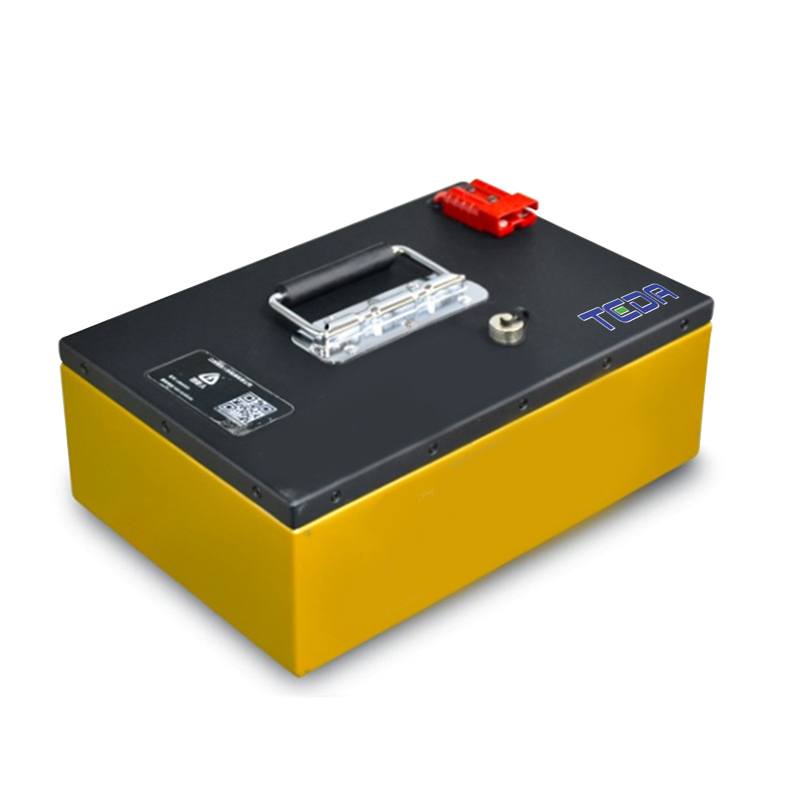

    Safe, durable, high cranking two wheeler battery

    Short Description:

    Teda knows what it takes to develop and produce lithium batteries that are lightweight, safe and reliable and compact power to perform in extreme conditions.

    Two wheeler batteries are mainly used in 2 wheel electric vehicles, 3-wheel electric vehicles, wheelchairs and other electric mobility application.

    Battery with built-in self-development high performance BMS (A Bluetooth APP is optional) to ensure ultra-high safety and reliability, particularly in bumpy road. With strong mechanical design for vibration, impaction and IP requirement for actual application.


    Product Detail

    Product Tags

    Parameters

    Nominal Voltage 48V 60V 60V 72V
    Nominal Capacity 30Ah 20Ah 60Ah 60Ah
    Energy 1440Wh 1200Wh 3600Wh 4320Wh
    Communication

    I2C/CanBus, LED indicator
    Charge Voltage 54.6±0.1V 67.2±1.0 V 70.55±1.0 V 84.0±1.0V
    Charge Current 10A 5A 12A 12A
    Max. Charge current 15A 10A 30A 30A
    Max. Continuous Discharge Current 30A 20A 40A 60A
    Peak Discharge Current 75A (3s) 50A (3s) 100A (3s) 120A (60s)
    Dimension (L x W x H ) 535*160*98mm       205*160*175mm      365*180*220mm      270*230*367mm
    Approx. Weight 9.8Kgs 8Kgs 25Kgs 31.7kgs
    Case Material ABS/Iron ABS/Iron Iron Iron (Black)
    Working Temp. Charge: 0~45°C Discharge: -20~60°C

    Features

    High reliability

    - Built-in with intelligent battery management System (BMS) and external function support like SOC displaces in LED, internal charger to support charge with USB.

    Lighter weight

    Compass energy design and about 40% of the weight of a SLA battery.

    Higher power

    Deliver twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity.

    High safety

    Ultra-reliable Lithium Iron Phosphate (LiFePO4) technology Lithium Iron Phosphate chemistry eliminate the risk of explosion or combustion due to high impact overcharging short circuit situation.

    Long life span

    -Offers up to 15 times longer cycle  life and 5 times longer float life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership

    Application

    Solar energy storage/ Communication base station/ UPS back up power supply/ Home energy storage system
