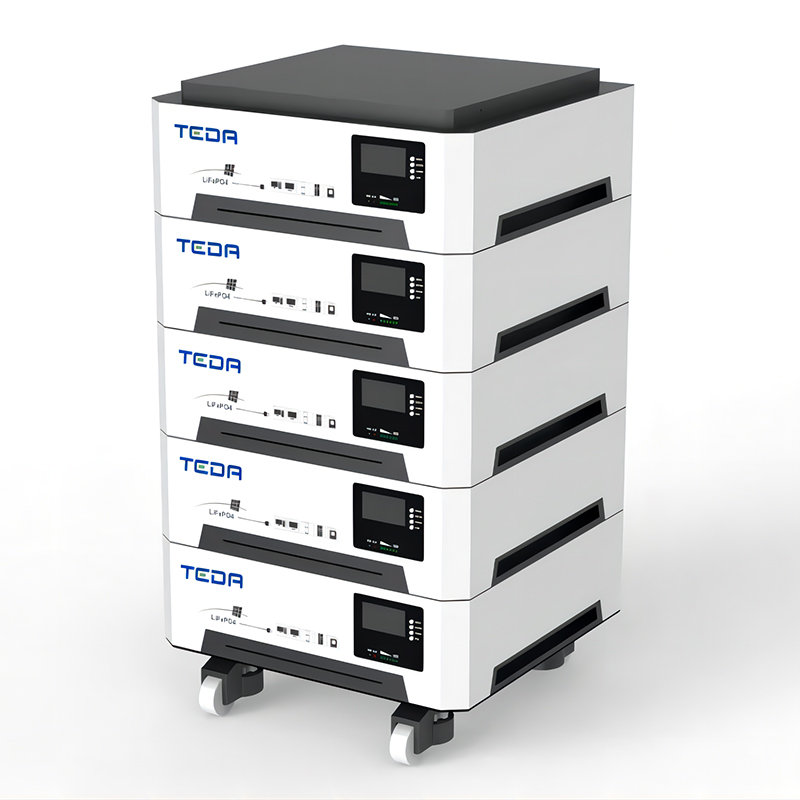

    Low power consumption with long calendar life home energy storage system

    Short Description:

    Low Energy Storage Battery includes 12V/48V/51.2V voltage range from 50~250Ah capacity,
    Mature mass production High Energy storage Battery includes 150V~500V,compact design with built in BMS with completed protection function to ensure ultra-high safety and reliability, support I2C/SMBUS/CANBUS/RS232/RS485 communication protocol.


    Product Detail

    Product Tags

    Parameters

    Nominal Voltage 51.2V 51.2V 51.2V
    Nominal Capacity 50Ah 100Ah 200Ah
    Energy 2560Wh 5120Wh 10240Wh
    Communication

    CAN2.0/RS232/RS485
    Resistance 40mΩ@50%SOC 45mΩ@50%SOC 45mΩ@50%SOC
    Charge Current 20A 20A 20A
    Max. Charge current 50A 100A 100A
    Max. Continuous Discharge Current 50A 100A 100A
    Peak Discharge Current 60A (3s) 110A (3s) 110A (3s)
    BMS Discharge Cut off Current 75A (300ms) 150A (300ms) 150A (300ms)
    Dimension (L x W x H ) 482*410*133mm      19.0*16.1*5.2’’ 482*480*133mm     19.0*18.9*5.2’’ 482*500*222mm     19.0*19.7*8.7’’
    Approx. Weight 25Kgs (11.4lbs) 44Kgs (20.0lbs) 80Kgs (35.7lbs)
    Module Parallel Up to 16 Packs Up to 16 Packs Up to 8 Packs
    Case Material SPPC SPPC SPPC
    Enclosure Protection IP65 IP65 IP65

    Features

    Long cycle life

    2000+ long cycle life with industrial design and easier of installation for end users.

    Modular design

    Modular design allows multiple units to be flexibly connected in serial and parallel.

    Reduce energy consumption

    Optimized household energy usage structure to reduce energy consumption and carbon emission.

    Intelligent store

    Safer and more economical energy enabled by smart storage technology.

    Ambient temperatures reach 60°C

    Suitable to use in a wider range of applications where ambient temperature up to 60°C.

    Application

    Solar energy storage/ Communication base station/ UPS back up power supply/ Home energy storage system
