Bottom price Communication Equipment Battery - Rechargeable LiFePO4 Lithium Ion Phosphate deep cycle Battery – Teda
Bottom price Communication Equipment Battery - Rechargeable LiFePO4 Lithium Ion Phosphate deep cycle Battery – Teda Detail:
Parameters
| Nominal Voltage | 12.8V | 12.8V | 12.8V | 25.6V |
| Nominal Capacity | 50Ah | 100Ah | 200Ah | 200Ah |
| Energy | 640Wh | 1280Wh | 2560Wh | 5120Wh |
| Communication |
I2C/RS232/RS485 |
|||
| Resistance | 30mΩ@50%SOC | 30mΩ@50%SOC | 45mΩ@50%SOC | 50mΩ@50%SOC |
| Charge Current | 20A | 20A | 20A | 20A |
| Max. Charge current | 50A | 100A | 200A | 200A |
| Max. Continuous Discharge Current | 50A | 100A | 200A | 200A |
| Peak Discharge Current | 80A (3s) | 200A (3s) | 400A (3s) | 400A (3s) |
| BMS Discharge Cut off Current | 120A±5A (30ms) | 300A ±10A (30ms) | 1000±150A (30ms) | 1000±150A (30ms) |
| Dimension (L x W x H ) | 228*144*210mm 9.0*5.7*8.3’’ | 320*172*215mm 13*6.7*8.5’’ | 483*170*240mm 19.0*6.7*9.4’’ | 522*240*218mm 20.6*9.5*8.6’’ |
| Approx. Weight | 7.5Kgs | 12Kgs | 23Kgs | 30kgs |
| Maximum Battery in Series or Parallel | 8 Battery PACKS | 8 Battery PACKS | 8 Battery PACKS | 8 Battery PACKS |
| Case Material | ABS+PC | ABS+PC | ABS+PC | ABS+PC |
| Enclosure Protection | IP65 | IP65 | IP65 | IP65 |
Features
Long cycle life
Ultralife lithium battery have 2000+ cycles
SLA battery only have 300-500cycles
Maintenance free
Auto-management sys with zero maintain fee.
SLAAuto-management sys with zero maintain fee need to check and replace regularly.
Earth friendly
Environment friendly and zero emission
SLA battery is a source of pollution to our environment
Quick charge
Support quick charging only need a few hours
SLA battery charging takes 8-10hours or more
Energy efficiency
100% depth of discharge, 100% usable capacity
SLA battery recommend 60% depth of discharge, around 75% usable
70% Lighter than Lead
Can typically reduce 70% of their weight and use around 1/3 of the space required for the same amount of power as their lead bank.
Application

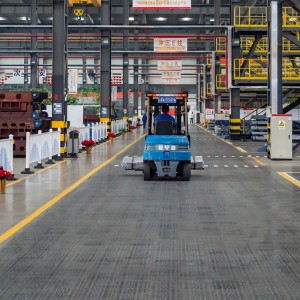

RV, Marine, Back up Power Supply, Material handling and so on to replace lead-acid batteries application.
